PET Blow Moulding Machines

Name: HassanPlas PET Stretch Blow Moulding Machine
Brand: HassanPlas

The complete HassanPlas PET stretch blow moulding range — full-automatic servo, wide-mouth servo, and semi-automatic systems for mineral water, beverage, edible oil, jar and 5–20L container production. From 600 BPH entry lines to 12,000 BPH high-output plants, supplied with preform moulds, blow moulds and complete auxiliary equipment.

Original-Factory Manufacturing

A full PET packaging solution

Every machine is built around a full-servo electronic cam drive for fast, stable and repeatable cycles. HassanPlas supplies the bottle-blowing machine, preform and blow moulds, and the complete auxiliary line — air compressor, air receiver, filters, dryer and chiller — as one engineered package, commissioned and supported in your country.

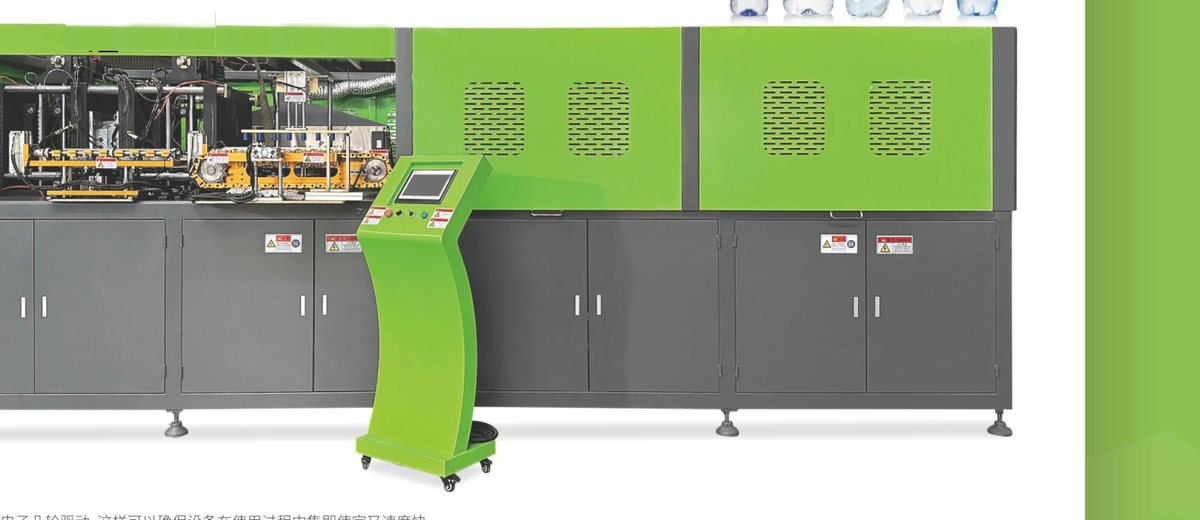

HassanPlas full-automatic servo PET blow moulding machine — Full-Automatic Servo
Full-Automatic Servo Blow Moulding Machine

Robotic preform feed, far-infrared heating and high-pressure servo clamping. 2 to 8 cavity, 0.65 L–2 L bottles, up to 12,000 BPH.

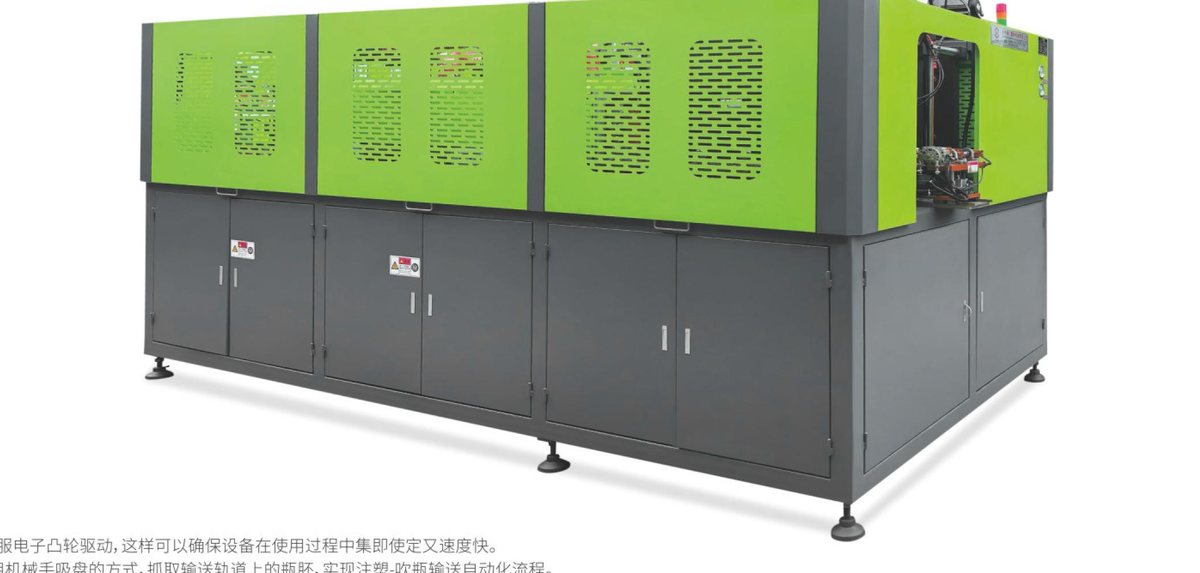

HassanPlas full-automatic servo wide-mouth bottle blowing machine — Wide-Mouth Servo
Full-Automatic Servo Wide-Mouth Machine

Engineered for wide-neck jars and containers — food jars, powder and pharma packs. Reinforced clamping for large-diameter necks.

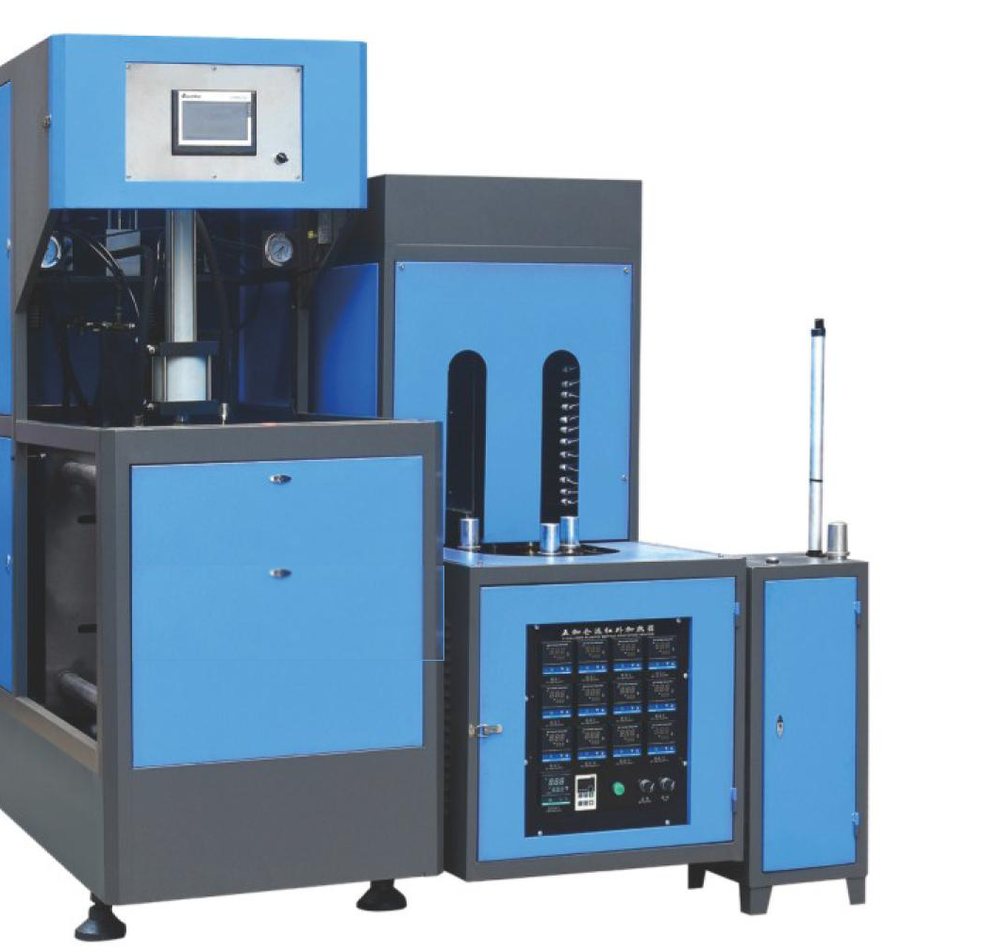

HassanPlas semi-automatic PET bottle blowing machine — Semi-Automatic
Semi-Automatic PET Blowing Machine

Operator-loaded preform with automatic heating and blowing. Entry-level for new bottlers and 5-gallon water plants. 600–1,800 BPH.

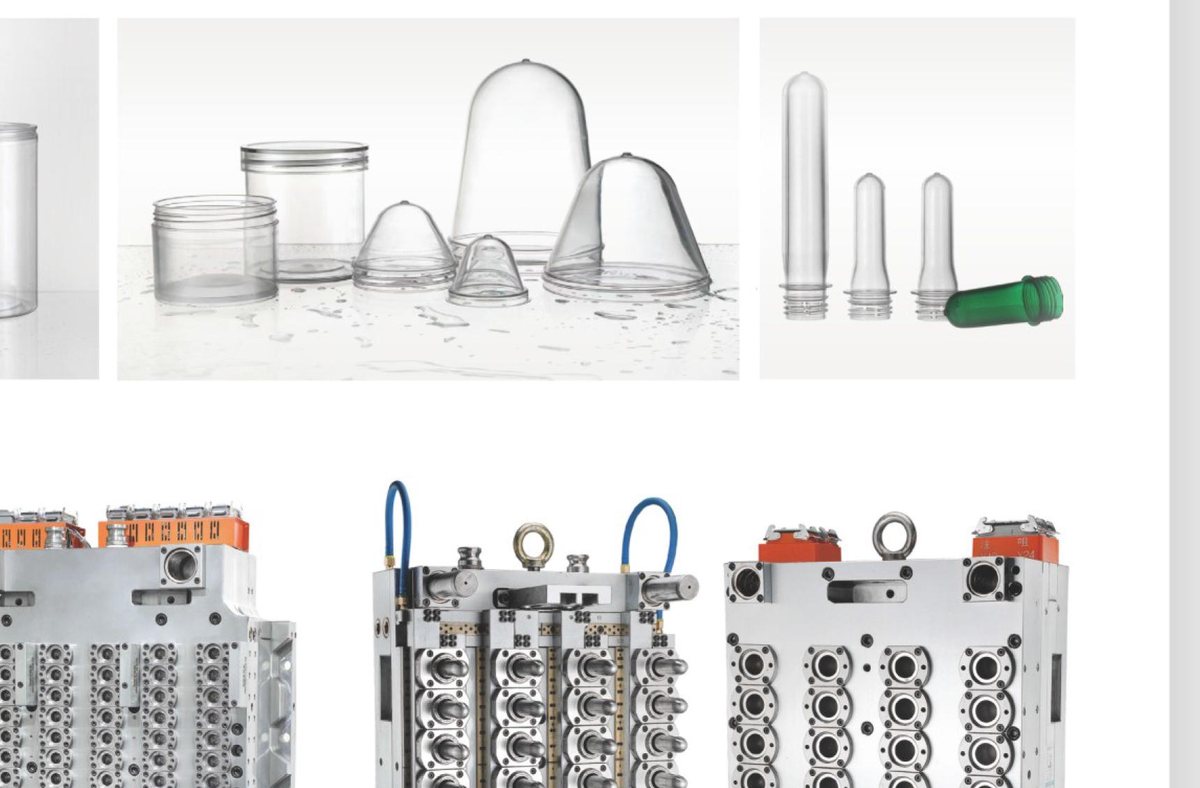

PET preforms, jars and high-cavity preform moulds supplied by HassanPlas — Tooling
Preform & Blow Moulds

Quick-change blow moulds with reversible locking rings, and CNC-machined preform moulds up to high cavity counts — sized to your bottle and neck finish.

Full-automatic servo PET blow moulding machine close-up

Why the servo series

Engineered for 24-hour production

Full-servo electronic cam drive — set-once speed control for fast, stable, repeatable cycles with low energy draw.
Robotic preform loading — suction-cup manipulator picks preforms straight off the conveyor for fully automatic feed-to-blow flow.
Far-infrared ruby heating lamps — fast, even pre-heat with individually adjustable lamp zones to tune temperature by preform section.
High-pressure servo clamping — flash-free, tight mould close with quick-change mould shells and back-plate positioning for minutes-fast changeovers.
Imported pneumatics — Parker / FESTO / SMC air components with low-pressure air recovery and individually adjustable stretch rods.
PLC servo control — German & Japanese electrical components, multi-language touch screen and WiFi remote diagnostics.
Photoelectric safety protection on preform position and clamp travel.

Bottle range, 0.65 L to 20 L

Two mould-pitch platforms — 76.2 mm and 114.3 mm centre distance — cover small water and beverage bottles, while the dedicated 5 L / 10 L / 20 L line handles large water dispenser bottles and industrial containers.

Model	Cavities	Mould Pitch	Max Volume	Max Bottle Ht.	Output (BPH)	Power
DR-76.2-2	2	76.2 mm	0.65 L	300 mm	2,000–2,500	60 kW
DR-100-2	2	100 mm	1.0 L	320 mm	1,800–2,200	60 kW
DR-114.3-2	2	114.3 mm	1.25 L	320 mm	1,800–2,200	75 kW
DR-76.2-4	4	76.2 mm	0.65 L	300 mm	4,000–4,500	90 kW
DR-114.3-4	4	114.3 mm	1.25 L	320 mm	3,800–4,200	94 kW
DR-76.2-6	6	76.2 mm	0.65 L	300 mm	5,500–7,000	110 kW
DR-114.3-6	6	114.3 mm	0.65 L	300 mm	8,000–9,500	110 kW
DR-76.2-8	8	76.2 mm	0.6 L	300 mm	10,000–12,000	130 kW
DR-5L-2	2	200 mm	5 L	400 mm	1,200–1,500	103 kW
DR-10L-1	1	—	10 L	450 mm	600–800	—
DR-20L-1	1	—	20 L	—	400–600	—

Output is indicative and depends on bottle weight, neck finish and ambient conditions. Bottle size flexibility depends on mould tooling — HassanPlas supplies matched preform moulds and blow moulds, separately or bundled with the machine.

Complete line

Auxiliary equipment, supplied and matched

A blow moulding machine is only as good as the air feeding it. HassanPlas sizes and supplies the full support line so your bottles blow to spec from day one:

High-pressure air compressor — 30–40 bar blowing air, oil-free options for food and pharma.
Air receiver tank — stabilises pressure and smooths peak blowing demand.
Line & precision filters — two-stage filtration for clean, dry blowing air.
Refrigerated air dryer — removes moisture that causes bottle defects.
Industrial water chiller — cools moulds for crisp bottle definition and faster cycles.

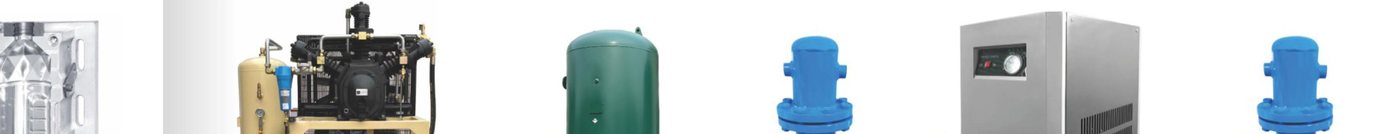

HassanPlas auxiliary equipment line — high-pressure compressor, air tank, filters and dryer

Built for your industry

Mineral Water

0.2 L–2 L bottles plus 5 L / 19 L / 20 L dispenser bottles. The highest-volume segment in Pakistan.

Beverage & CSD

Carbonated soft drinks, juice and tea — pressure-rated bases and hot-fill-capable blowing.

Edible Oil

500 ml to 5 L clear PET bottles with high-clarity, even wall distribution.

Food Jars & Wide-Mouth

Wide-neck jars for food, powder and confectionery on the servo wide-mouth platform.

Pharma & Cosmetics

Small-cavity precision blowing for food-grade and pharma-grade containers.

Industrial Containers

10 L / 20 L jerry-can and chemical container blowing on the heavy-duty single-cavity line.

What every HassanPlas machine includes

12-month factory warranty on machine components
One year of consumable spare parts (heaters, sensors, gaskets)
Technician installation & commissioning visit (3–7 days)
Operator and maintenance training
Original electrical schematics and pneumatic diagrams
HassanPlas regional support: spare parts dispatch from China within 7–14 days

Get a PET blow moulding quote

Send us your bottle size, daily production target, and material spec — we'll size a machine, matched moulds and auxiliary line, and supply a landed-cost quote within 48 hours.
