Extrusion Blow Moulding Machine — Bottles, Jerry Cans, Drums

Q: What can an extrusion blow moulding machine make?

Extrusion blow moulding makes hollow HDPE and PP products: shampoo, detergent, lube-oil and pesticide bottles, jerry cans, 20–220 L drums, IBC inner tanks, water tanks, and large technical parts such as pallets, toolboxes, car parts, road barriers and playground slides.

Q: Can the machine make multi-layer bottles?

Yes. Die heads are available in single-layer, double-layer, double-layer with a transparent view stripe, and three-layer designs, and the accumulator range can be customised for 1–6 layer products — used for barrier pesticide bottles and recycled-core containers.

Q: How many cavities can one machine run?

Depending on bottle size, die heads are supplied with 1, 2, 3, 4, 6 or 8 cavities. Small bottles run on multi-cavity heads; large containers run single or double cavity.

0.1 ml – 500 LProduct range across both families

1–6 layersSingle, multi-layer & view-stripe

Up to 300 kg/hHDPE melting capacity

1–8 cavitiesDie head configurations

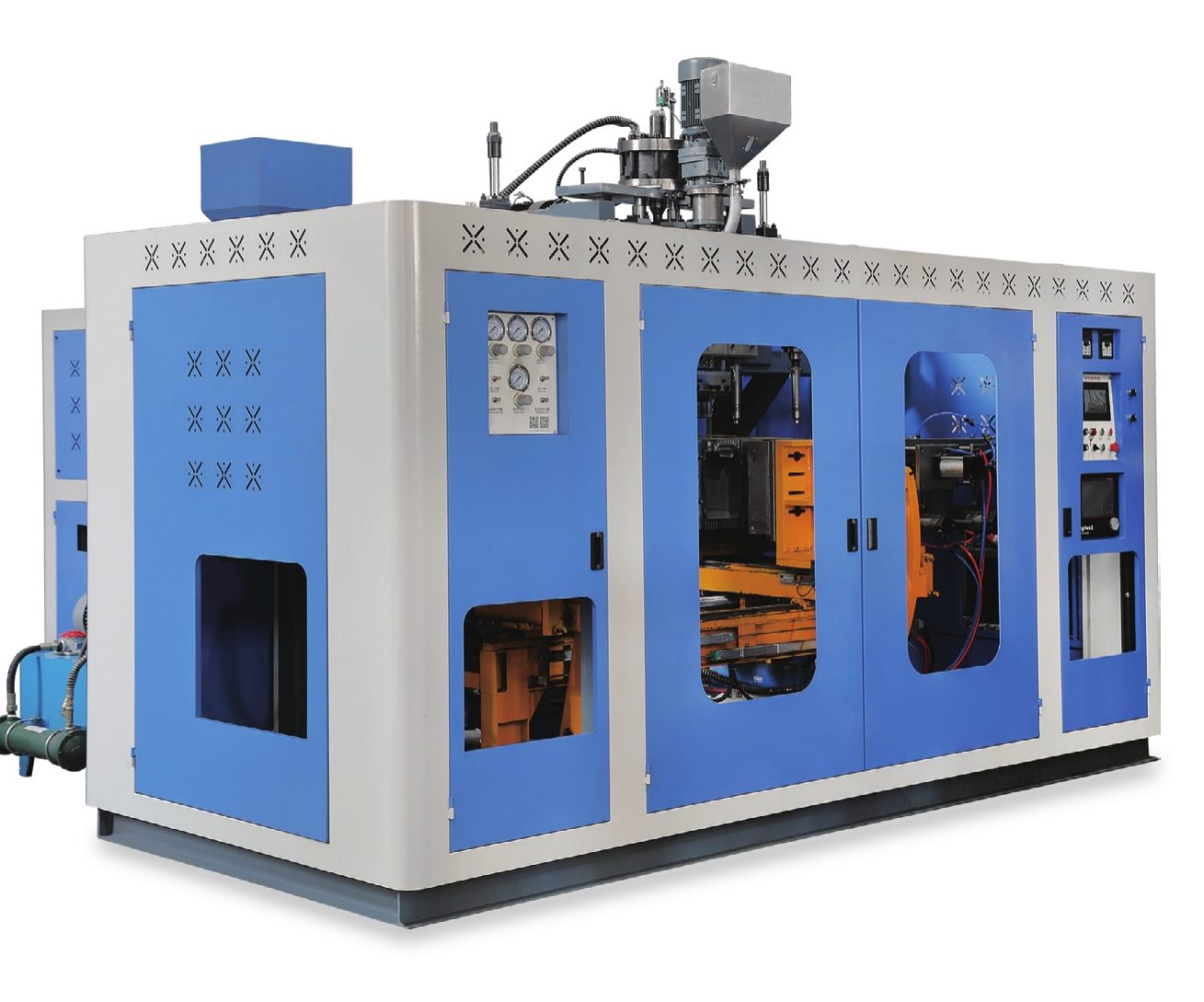

Automatic extrusion blow moulding machine for HDPE bottles and jerry cans — Continuous Extrusion · 0.1 ml–60 L
Automatic Extrusion Blow Moulding Machine

The standard machine for everyday hollow plastic products from 0.1 ml to 30 L, with models up to 60 L. Several clamping structures are available, so each product gets the best-suited machine.

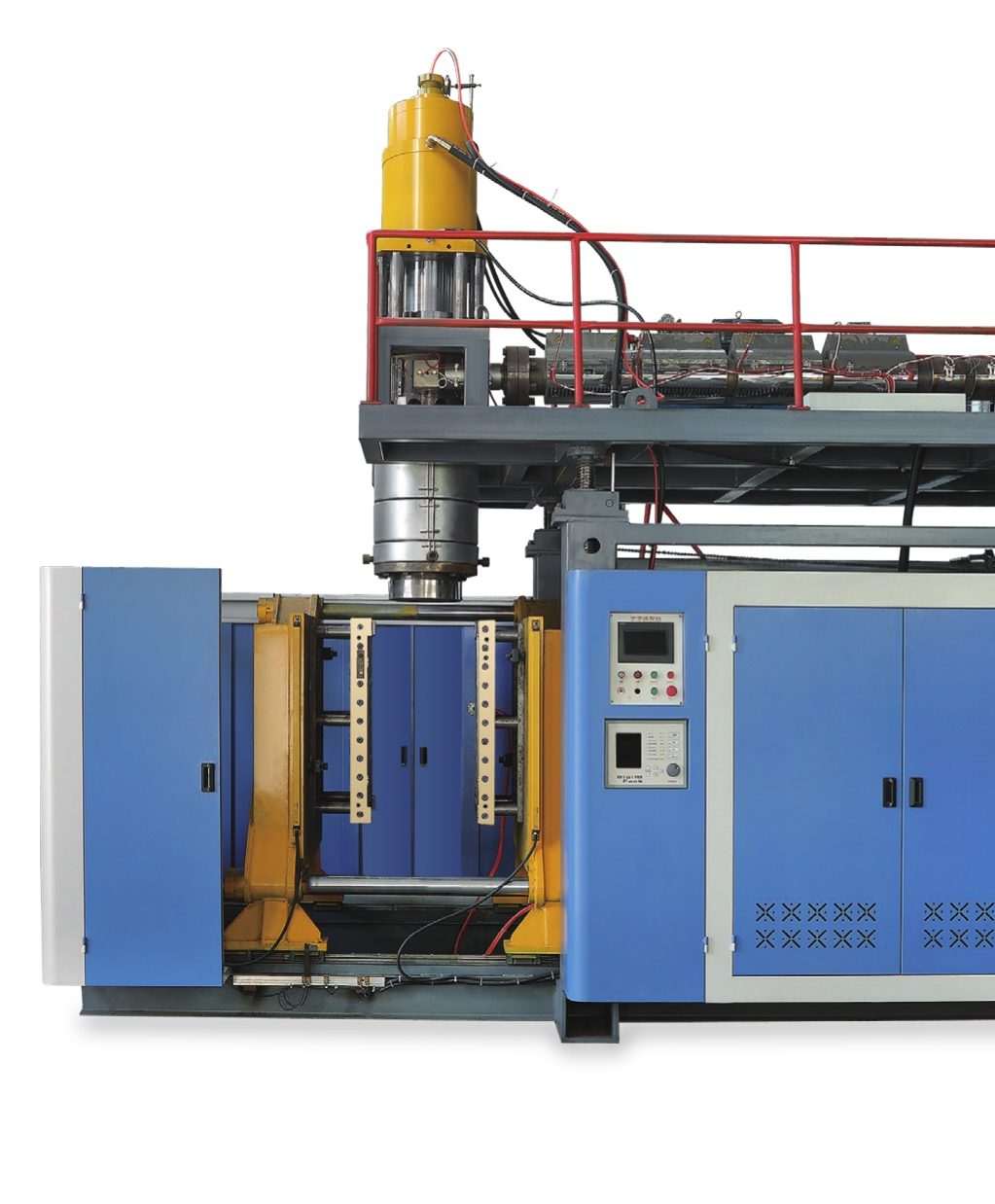

Accumulator head (storage cylinder) blow moulding machine for drums and IBC tanks — Accumulator Head · 20–500 L
Storage-Cylinder (Accumulator) Blow Moulding Machine

A high-tech, servo energy-saving accumulator machine. Melt is stored in the die head and pushed out in one fast stroke for big, heavy parts: chemical drums, IBC tanks, toolboxes, kids' toys, chairs, car parts and pallets. An advanced parison controller keeps wall thickness even.

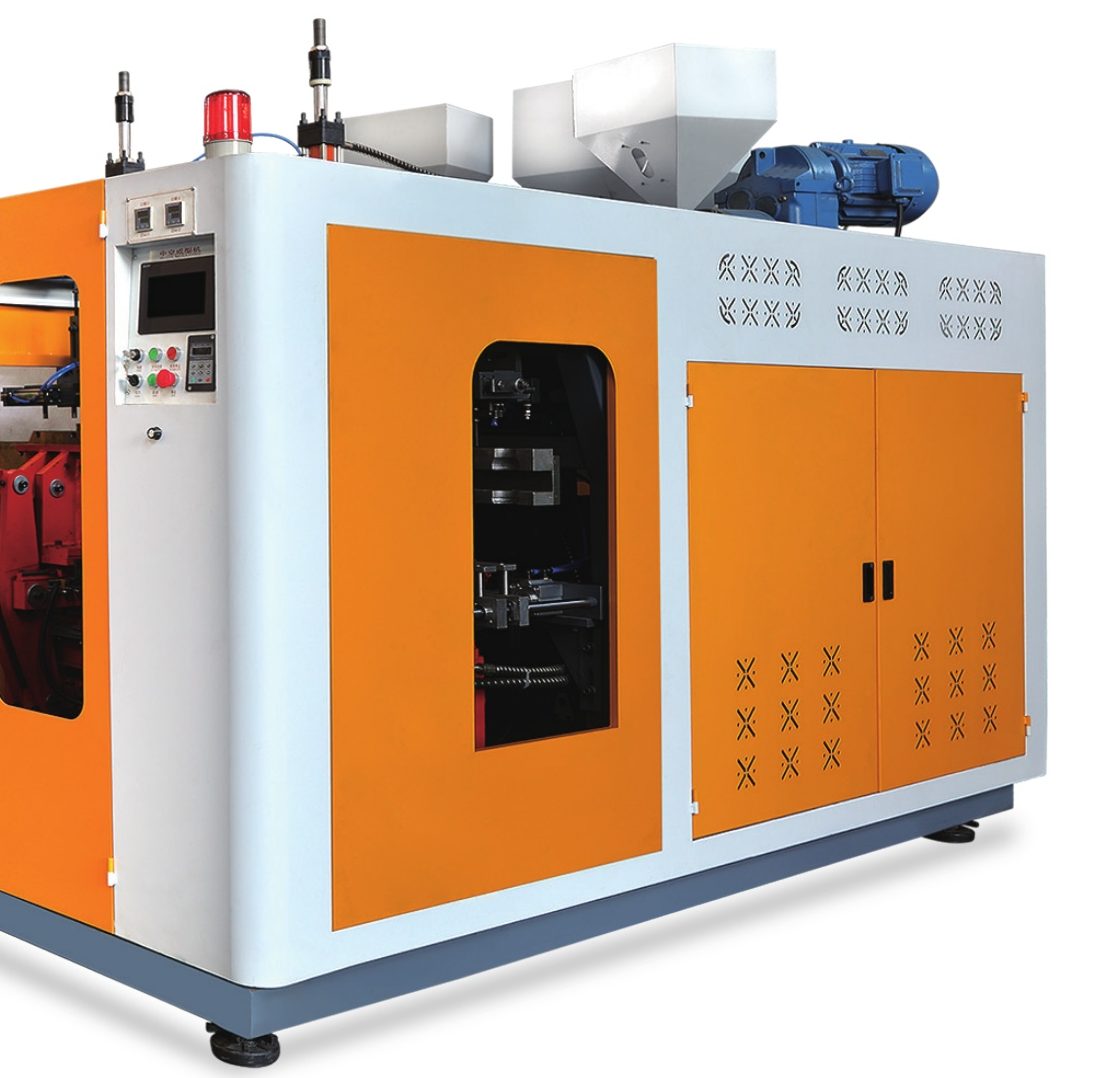

Multilayer pesticide bottle extrusion blow moulding machine — Special Purpose · Multi-Layer
Multilayer Pesticide Bottle Machine

A dedicated co-extrusion machine for agrochemical and pesticide bottles, where a multi-layer wall gives the barrier and chemical resistance the product needs.

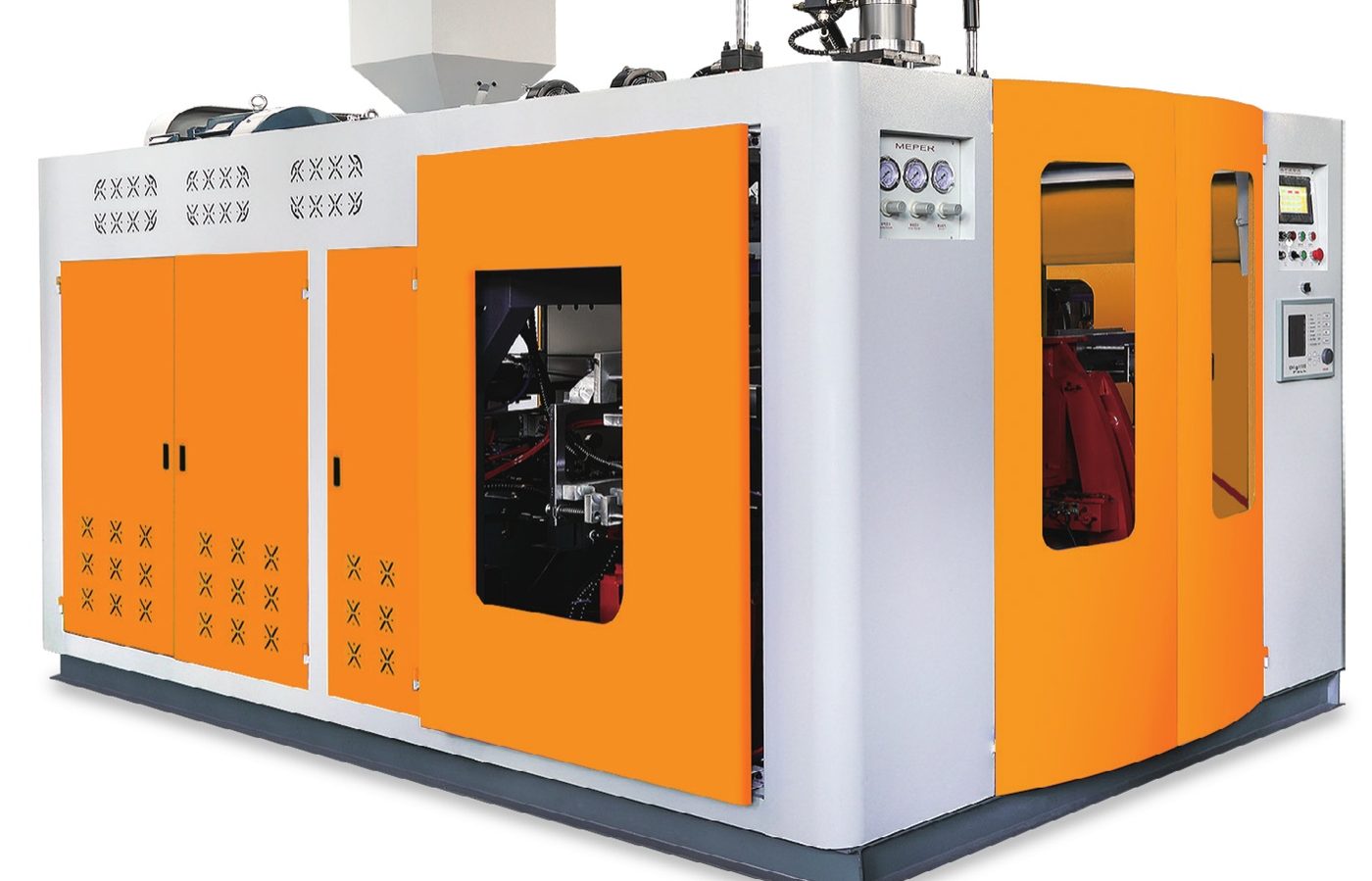

Engine oil and lubricant bottle blow moulding machine — Special Purpose · 1–12 L
Engine-Oil & Lubricant Bottle Machine

For 1–12 L fuel, lube-oil and detergent bottles. The streamlined die head has no dead angles in the flow channel, for a clean surface and fast colour change. View-stripe, hybrid drive, conveyor, in-mould labelling, leak tester and robot arm are optional, up to a fully automatic line.

Machine structures

Four clamping platforms, one for every product

01

Pneumatic series · 1–5 L

Small, light and fast. Clean, oil-free running and low power use, well suited to small bottles in food, personal care and pharma.

02

Hydraulic three-platen · 1–12 L

Standard hydraulics with a three-platen design. Stable running, generous mould space and an economical price that is easy to operate.

03

Toggle-arm series · 0.5–30 L

An advanced toggle-arm clamp gives stronger, more uniform clamping force and a neat parting line, across the full 0.1 ml–30 L range.

04

All-electric series · 1–30 L

A pure electric drive with toggle clamping. High speed, energy saving, low noise and oil-free.

Options across the range: electric mould shifting, servo oil pump, parison wall-thickness controller and transparent view-stripe line. Parameters are adjusted to suit each option.

Technical parameters

Automatic EBM: 2 L to 60 L

Standard continuous-extrusion machines. The model name is the largest typical container size. Scroll the table sideways on mobile.

Parameter	2 L	5 L	10 L	15 L	20 L	30 L	60 L
Machine
Dimensions L×W×H (m)	3×2×2.2	3.7×2×2.3	4×2.86×2.5	4.5×3.3×2.8	5×3.8×3	6.5×6.3×2.5	7.6×7.3×4.6
Machine weight (t)	3.8	5.5	7	10	15	20	26
Extruder
Screw diameter (mm)	55	70	80	90	100	100	120
Screw L/D	25	25	25	25	25	25	25
Screw heating zones	4	4	5	5	5	5	5
Screw heating power (kW)	11	12.6	17.6	17.6	17.6	22.4	30.2
Extruder motor (kW)	11	18.5	22 / 30	30 / 37	45	55	90
HDPE melting capacity (kg/h)	50–70	70–85	100–120	130–160	180–220	160	280
Die head
Die head heating zones	3	4	4	5	5	5	5
Max die diameter (mm)	90	160	160	220	220	260	350
Clamping
Clamping range (mm)	200–400	200–480	220–500	260–600	370–800	360–850	450–1050
Open stroke (mm)	200	180	180	340	430	190	600
Clamping force (kN)	50	100	100	160	190	200	365
Max mould size W×H (mm)	300×350	400×420	450×460	500×500	600×620	700×980	800×1050
Oil pump motor (kW)	7.5	11	11	12	15	15	18.5
Utilities
Total power (kW)	40–43	50–60	62–72	88–93	91–97	110–120	120–130
Blowing air pressure (MPa)	0.6	0.6	0.6	0.6	0.8	0.8	0.8
Air consumption (m³/min)	0.5	0.5	0.6	0.7	0.7	0.8	1
Cooling water (L/min)	50	60	60	60	70	70	90

Technical parameters

Accumulator-head machines: 20 L to 500 L

Standard servo energy-saving models, customisable for 1–6 layer products. If your product falls outside these sizes, we build the machine to suit it.

Parameter	20 L	30 L	60 L	90 L	120 L	160 L	300 L	500 L
Machine
Dimensions L×W×H (m)	4.0×1.7×3.5	4.5×2.2×3.8	5.0×2.4×4.2	5.4×2.6×4.5	5.6×2.8×4.6	5.8×2.8×5.2	6.5×3.2×5.4	7×3.5×6
Machine weight (t)	6	8.5	12	14	15	18	25	32
Extruder
Screw diameter (mm)	70	80	90	100	100	110	120	120
Screw L/D	25:1	25:1	25:1	25:1	28:1	25:1	25:1	28:1
Screw heating zones	4	4	5	5	5	5	6	6
Screw heating power (kW)	12	15	18	22	24	26	30	36
Extruder motor (kW)	22	30	37	45	55	75	90	110
HDPE melting capacity (kg/h)	80	110–130	130–160	160–200	170–210	180–220	200–240	260–300
Accumulator die head
Die head heating zones	5	5	5	5	5	5	5	6
Max die diameter (mm)	230	250	350	500	500	550	550	700
Die head heating power (kW)	16	20	24	30	30	35	38	40
Accumulator capacity (L)	3	5	6.6	12	15	15 / 20	20 / 25	30
Clamping
Clamping range (mm)	500	500	600	700	900	900	1000	1000
Open stroke (mm)	300–800	350–850	450–1050	500–1200	500–1400	550–1350	600–1600	800–1800
Clamping force (kN)	130	200	350	450	450	750	950	1500
Max mould size W×H (mm)	460×600	520×860	700×980	800×1000	900×1200	1000×1300	1100×1700	1200×2000
Utilities
Oil pump motor (kW)	15	15	18.5	22	22	22	35	35
Total power (kW)	65	80	100	118	130	138	180	220
Cooling water pressure (MPa)	0.3–0.4	0.3–0.4	0.3–0.4	0.3–0.4	0.3–0.4	0.3–0.4	0.4–0.5	0.4–0.5
Blowing air pressure (MPa)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Air consumption (m³/min)	0.8	0.8	1	1.2	1.8	1.8	1.8	2
Cooling water (L/min)	100	100	120	120	120	120	120	120

Data is for reference. The manufacturer may change mechanical details, and the specification in your purchase contract is final.

What you can make

From 100 ml bottles to 500 L drums & tanks

Bottles: shampoo, detergent, bleach, disinfectant, sauce and milk bottles, plus pharma and pesticide bottles.
Jerry cans & lube oil: 1–30 L jerry cans, 1–5 L engine-oil bottles and fuel cans, with optional view stripe.
Drums & tanks: open- and tight-head drums, loft water tanks and sprayer tanks. Larger machines for IBC inner tanks are built to order.
Technical parts: plastic pallets, toolboxes, car spoilers and ducts, hospital-bed panels, road barriers, chairs, and kids' playground slides and toys.

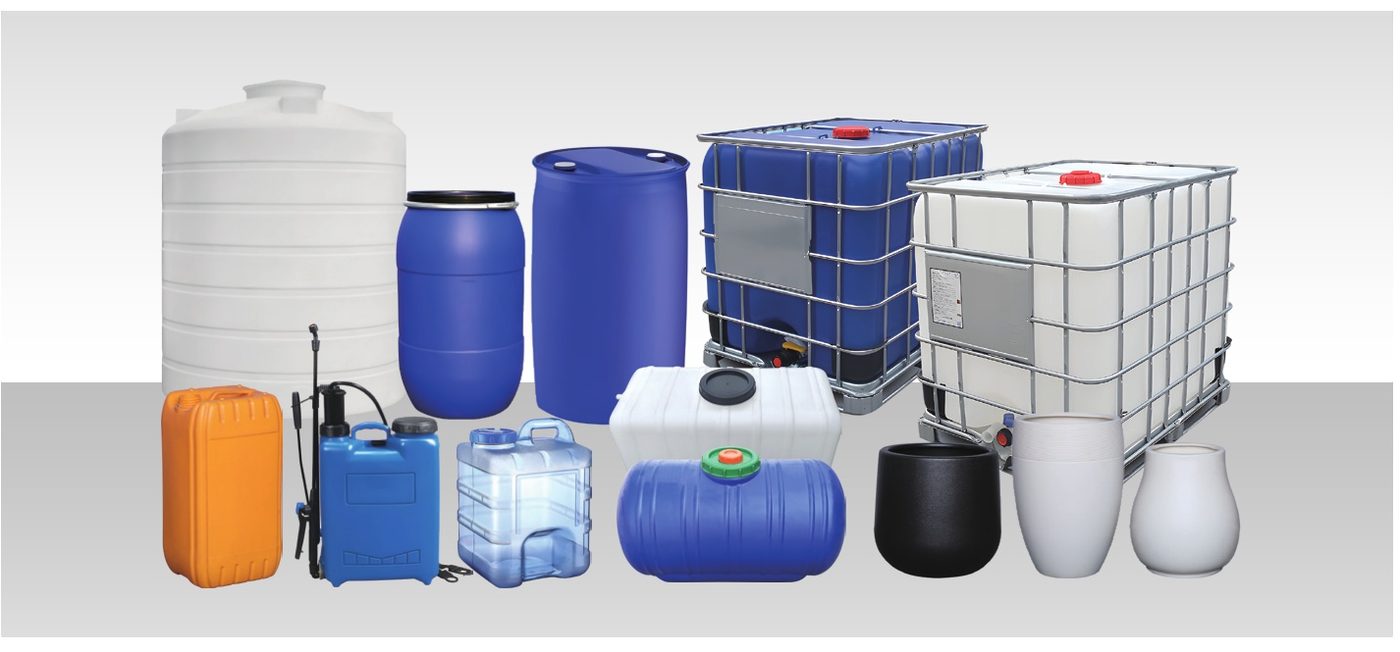

HDPE drums, IBC tanks, water tanks and jerry cans made by extrusion blow moulding

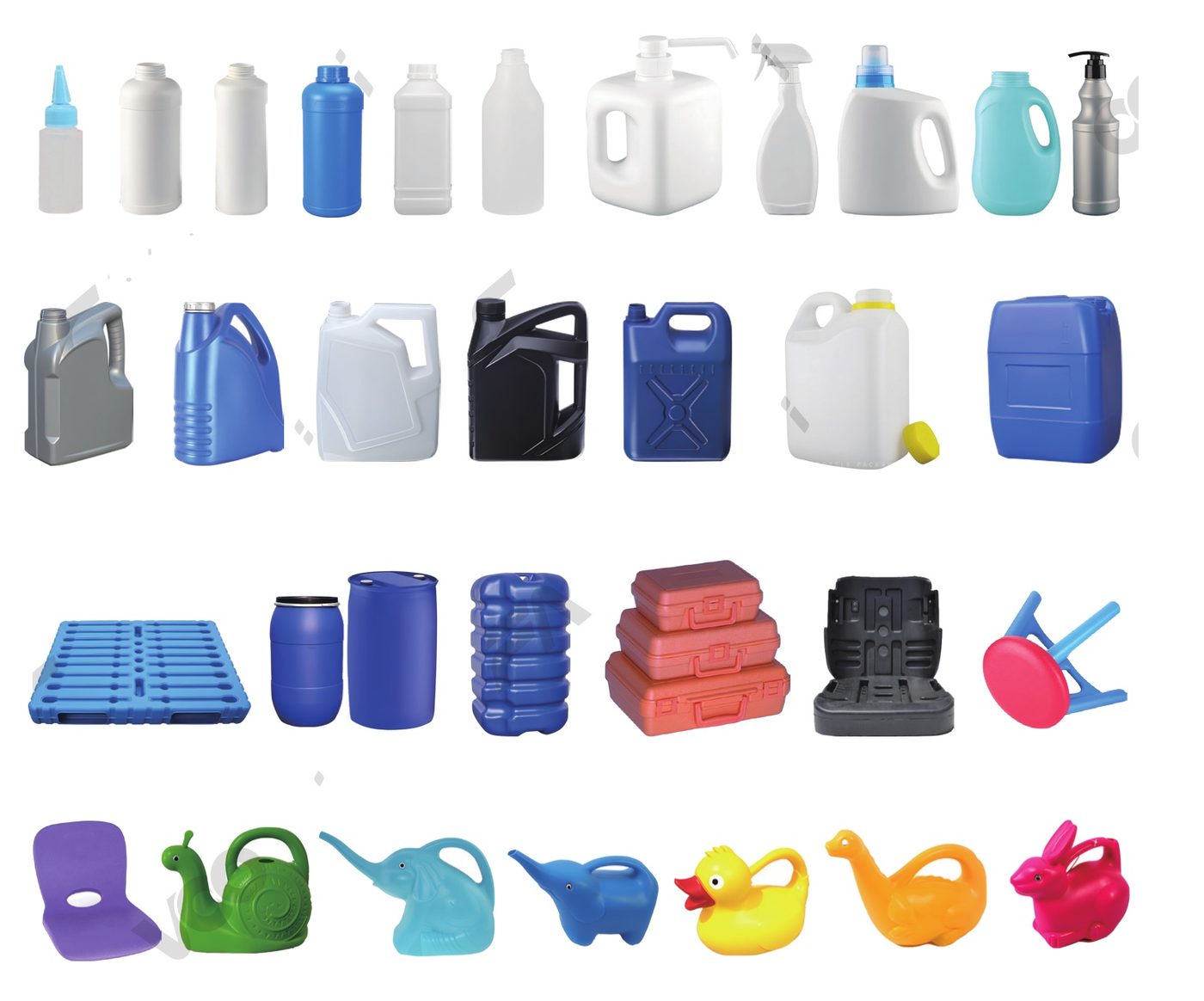

Extrusion blow moulded bottles, jerry cans, pallets, toolboxes, toys and chairs

Die head system

Die heads for every layer and cavity count

Die heads are designed in 3D software for special materials and multi-layer products:

Single-layer heads, plus double-layer heads with 2 cavities.
Double-layer heads with a transparent view stripe, for liquid-level lines on oil and chemical containers.
Multi-cavity heads with 3, 4, 6 or 8 cavities for high-output small bottles.
Three-layer heads for barrier and recycled-core products.

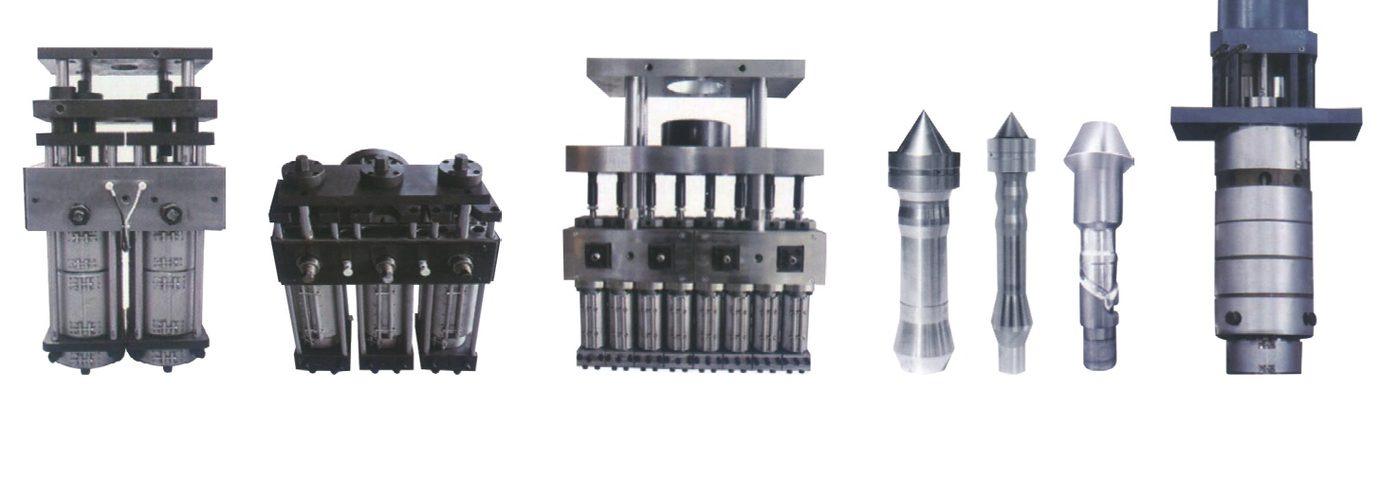

Single and multi-cavity extrusion blow moulding die heads

Quality components

World-brand electrics & pneumatics

Main electrical and pneumatic components come from international brands, including Moog (parison control), Siemens, Mitsubishi, Schneider and Delta (control and drives), Yuken and Rexroth (hydraulics), Festo, SMC and AirTAC (pneumatics), Gefran (sensors) and Hiwin (linear guides). The exact list depends on the model and options in your quotation.

Complete line, matched auxiliaries

01

Air & cooling

High-pressure piston or screw air compressor, air dryer, air filter, air receiver tank and industrial water chiller.

02

Material handling

Automatic feeder, vertical colour mixer, plastics dryer, and a crusher (pulveriser) to recycle flash and tails.

03

Downstream automation

Deflashing, take-out conveyor, robot arm, in-mould labelling machine and bottle leakage detector.

See all auxiliary equipment →

Frequently asked questions

What can an extrusion blow moulding machine make?

Extrusion blow moulding makes hollow HDPE and PP products. That includes shampoo, detergent, lube-oil and pesticide bottles, jerry cans, 20–220 L drums, IBC inner tanks and water tanks. It also makes large technical parts such as pallets, toolboxes, car parts, road barriers and playground slides.

What is the difference between a continuous and an accumulator-head machine?

A continuous-extrusion machine extrudes the parison non-stop and suits bottles and containers up to about 30–60 L. An accumulator-head (storage cylinder) machine stores melt and pushes out a large, heavy parison in one fast stroke. That is what drums, IBC tanks and other big parts from 20 L up to 500 L and beyond need.

Can the machine make multi-layer bottles?

Yes. Die heads come in single-layer, double-layer, double-layer with transparent view stripe, and three-layer designs. The accumulator range can be customised for 1–6 layer products, which are used for barrier pesticide bottles and recycled-core containers.

How many cavities can one machine run?

Depending on bottle size, die heads come with 1, 2, 3, 4, 6 or 8 cavities. Small bottles run on multi-cavity heads, and large containers run single or double cavity.

Which brand components are used?

Main electrical and pneumatic parts use international brands such as Moog, Siemens, Mitsubishi, Festo, SMC, Gefran, Delta, Yuken, AirTAC, Rexroth, Schneider and Hiwin, depending on configuration.

Get an extrusion blow moulding quote

Tell us the product (bottle, jerry can, drum or tank), its volume and weight, the number of layers, and your daily output. We'll size the machine, die head and moulds, and send a landed-cost quote within 48 hours. WhatsApp +92 321 4466539.
